This Article Applies From:
DeMeter
25.1
DeMeter Collectoc
4.2.1
Model Trainer
1.9.2.1
Classifier
1.9.2.1


Introduction

The following guide focuses on DeMeter Analytics installation.


TABLE OF CONTENTS

Introduction

1 - Pre- requisites

1.1 - Suggested readings before diving-in

1.2 - Analytics and licensing

2 - Curve Analytics Installation

2.1 - Curve Analytics Overview

2.2 - Installing DeMeter Model Trainer

2.3 - Installing DeMeter Classifier


1 - Pre- requisites


1.1 - Suggested readings before diving-in

Please read through the following articles before reading through this installation procedure.


1.2 - Analytics and licensing

DeMeter Curve analytics feature is subject to a specific licensing: the DeMeter Service Pack.

Reach out to your local Desoutter representative if you need further details.


2 - Curve Analytics Installation


2.1 - Curve Analytics Overview

DeMeter Curve Analytics requires 2 dedicated packages to be installed:

  • DeMeter Model Trainer: the package will handle the training of DeMeter model for a specific Context.
  • DeMeter Classifier: once a model has been trained thanks to the Model Trainer, the Classifier will associate any incoming curves with one of the created Cluster.

Note:

  • A context in DeMeter is the combination of a Controller, a Tool and a PSET.
  • A Cluster in DeMeter is a set of curves sharing similar characteristics.


2.2 - Installing DeMeter Model Trainer

Retrieve the latest Model Trainer archive and load it to the DeMeter server.

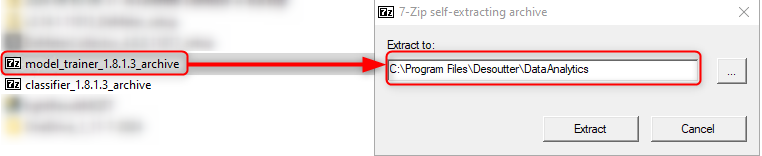

  • Double click on Model_Trainer_X.X.X.X_archive to extract it to C:\ProgramFiles\Desoutter\DataAnalytics - create the folder is necessary.
  • Rename the folder from ..\model_trainer_X.X.X.X to ..\model_trainer.

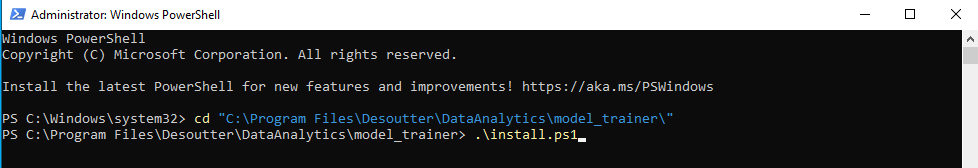

  • Open a Power Shell command tool with Administrator privileges. Run the install script in the model_trainer folder.

A new service, Desoutter DeMeter ModelTrainer, must be running at the end of the installation process:


2.3 - Installing DeMeter Classifier

Retrieve the latest Classifier archive and load it to the DeMeter server.

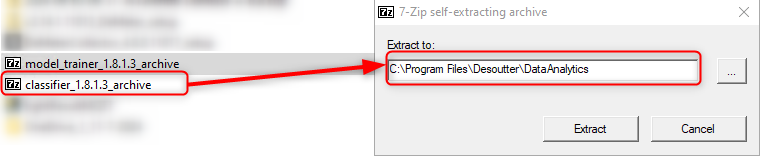

  • Double click on Classifier_X.X.X.X_archive to extract it to C:\ProgramFiles\Desoutter\DataAnalytics.
  • Rename the folder from ..\classifier_X.X.X.X to ..\classifier.

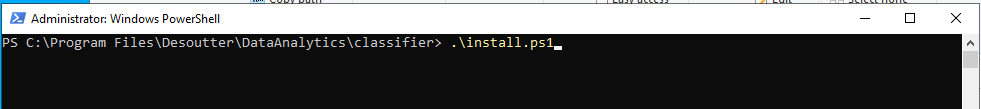

  • Open a Power Shell command tool with Administrator privileges. Run the install script in the classifier folder.

A new service, Desoutter DeMeter Classifier, must be running at the end of the installation process:
