Introduction
DeMeter, like CVINet in the past, is capable of sending Time Synchronisation requests to the controllers.
In order to ensure that the synchronisation occurs, there are two steps to take:
- Enable the feature at the controller level.
- Enable the functionality in DeMeter Collector.
TABLE OF CONTENTS
- Introduction
- Activate Synchronization between the computer and DeMeter
- CVINet Date and time configuration
Activate Synchronization between the computer and DeMeter
For DeMeter activation:

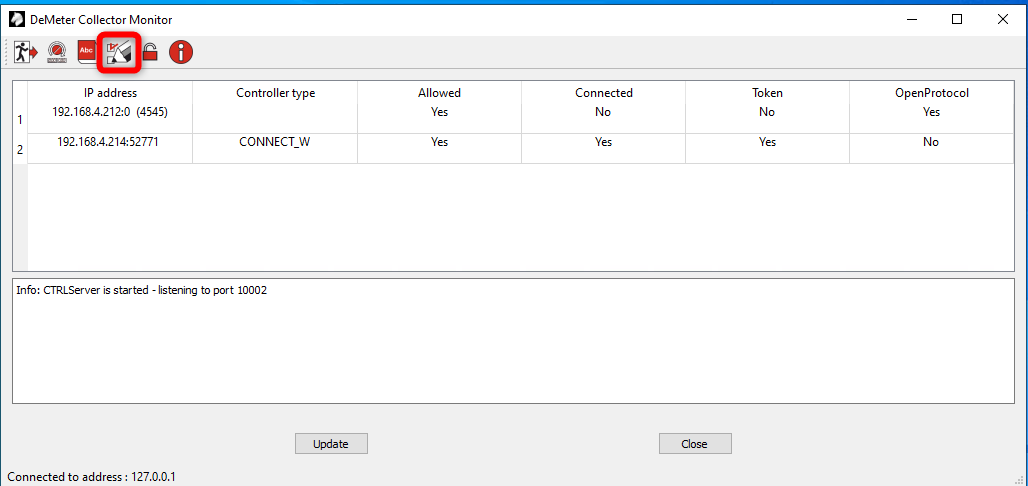

- Double click on DeMeter Collector Monitor on your server.
- Click the General Parameters button in the DeMeter Collector Interface.
- Expand the Date Time Synchronization Panel then check whether the Send computer date and time to controllers option is enabled - if not, enable it.
- Click OK - ideally, restart DeMeter Collector service.
CVINet Date and time configuration

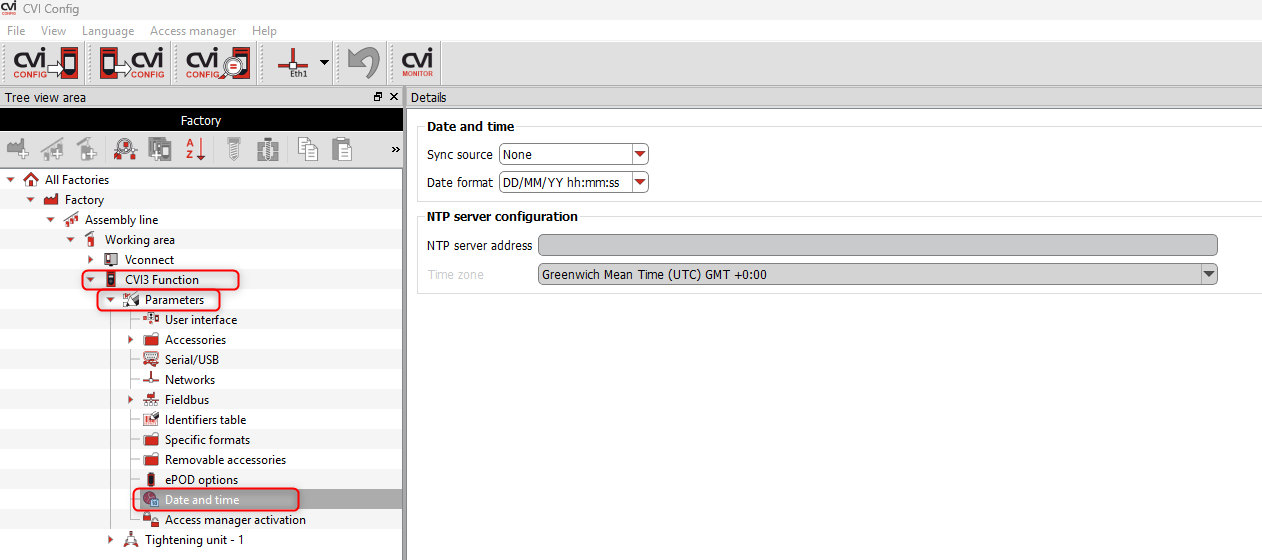

To configure the date and time in CVINet :
- In CVIConfig, select the controller or Product
- Expand the Parameters list
- Select "Date and time"

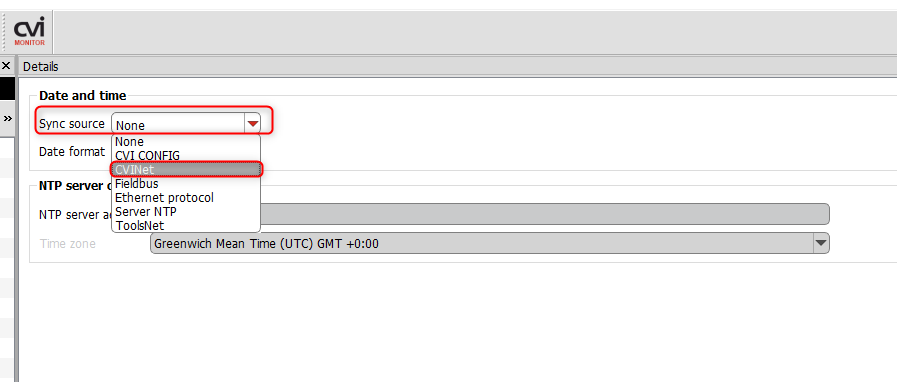

- In Sync source : Select "CVINet" and choose you ideal date format.
To view other links to get started with DeMeter, please click on this link :
Desoutter Industrial Tools : DeMeter
